Health Check Error: Invalid Advanced Workflow Field Use

Overview

The Health Check wizard must be run when upgrading in order to evaluate whether your instance is suitable for upgrade. The Health Check wizard detects a variety of issues that may affect your ability to upgrade. This article will cover how to resolve an "Invalid Advanced Workflow Field Use" error reported by the health check.

Note: This error was formerly titled "Invalid Process Author Field Use".

Symptoms

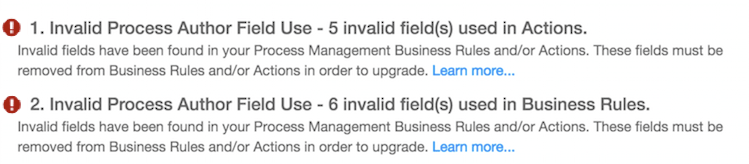

This error generates an output similar to the following in health check:
HC InvalidPAFieldUse

Resolution

As Sugar's Advanced Workflow functionality evolves, certain fields and field types that were available in earlier versions may be prohibited in later versions for data integrity purposes. Please refer to the Advanced Workflow Blacklist section below for a list of the blacklisted items in Advanced Workflow modules and the Sugar version in which they were removed.

The error indicates that the health check has discovered blacklisted fields in a Process Business Rule or Action for a Process Definition in your instance. This issue will need to be fixed before proceeding with the upgrade.

Click the Export Log link below the health check results to view the log file detailing the records and elements causing the error. If you are prompted to download the log instead, please save the file to your local machine then view the errors. We will use the following log line as an example:

[2016-02-09T15:28:09-08:00] INFO -----
Accounts->date_modified field is not a valid business rule conclusions field.
Business Rule Name: Users and such
ID: 4381f1b4-9a47-4ef8-abf6-56a6d0bcb45f
-----

This example reveals that the invalid reference was found in a conclusion element of a process business rule record. The conclusion modifies the date_modified field, which has been blacklisted for use in conclusions as of 7.6.2.0. The listed ID (4381f1b4-9a47-4ef8-abf6-56a6d0bcb45f) then identifies the specific record within the module (e.g. Process Business Rule conclusions) where the issue exists. To address this error, navigate to the Advanced Workflow record which references the blacklisted field and either remove the record or remove the invalid field reference (e.g. remove the conclusion that affects the date_modified field).

Once the necessary changes have been made, please navigate to Admin > Repair and perform a "Quick Repair and Rebuild" to ensure that the changes are synced between the application and database.

Perform the health check again to confirm that the error is no longer reported.

Advanced Workflow Blacklist

The following table lists the blacklisted items in Advanced Workflow modules and the Sugar version in which they were removed:

Module	Element Type	Blacklisted Items	Sugar Version
All Advanced Workflow modules	Fields	`contact` `deleted` `favorite_link` `following_link` `system_id` `mkto_sync` `mkto_id` `mkto_lead_score` `parent_type` `user_name` `user_hash` `user_sync`	7.6.0+
	Fields	`is_admin` `password` `portal_active` `portal_app` `portal_name`	7.6.2+
	Field Types	`image` `password`	7.6.0+
	Field Types	`file`	7.6.2+
Process Business Rules: Conclusions	Fields	`created_by` `date_entered` `date_modified` `duration_hours` `duration_minutes` `modified_user_id` `repeat_type`	7.6.2+
Process Definitions: Change Field Actions	Fields	`created_by` `date_entered` `date_modified` `modified_user_id`	7.6.2+
