Sugar Connect User Guide for Office 365

Overview

This guide walks through the terminology, features, and functionality enabled by Sugar Connect for Office 365, an Outlook add-in that lets you work with your Sugar data without navigating away from Outlook. You can use Sugar Connect to sync your Sugar and Outlook contacts and calendars, create new Sugar records, utilize your Sugar email templates, and easily archive incoming and outgoing email messages and attachments to Sugar.

Note: This guide is for Outlook users on Office 365 only. If you have installed Sugar Connect for Google Workspace (formerly G Suite), please refer to the Sugar Connect User Guide for Google Workspace.

Administrators can find more information on configuring Sugar Connect before users can install it in the Sugar Connect Deployment and Administration Guide. For the steps that users should take to install and activate Sugar Connect, refer to the Sugar Connect User Installation Guide.

Prerequisites

  • Sugar Connect for Office 365 must be installed to Outlook before it can be used. For steps to install Sugar Connect, please refer to the Sugar Connect User Installation Guide.
  • Refer to the installation prerequisites for important information about purchasing, deploying, and installing Sugar Connect.
  • This guide applies to Sugar Connect used with an Office 365 subscription. If you have installed Sugar Connect for Google Workspace, please refer to the Sugar Connect User Guide for Google Workspace. Sugar Connect for Office 365 is compatible with the following Outlook applications:
    • Outlook on the web
    • Outlook for Desktop (Windows)
    • Outlook for Desktop (Mac OS)

For more information, please refer to the Plug-ins Supported Platforms page.

Terminology and Features

Term Description
Sugar Connect Portal The portal is the website where your Sugar Connect features can be set up and managed.
Sugar Connect Sidebar The sidebar is a panel in Outlook where you can work with Sugar records related to your email and calendar contacts.
Email Archiving Create a copy of an email message from Outlook as an email record in Sugar's Emails module and relate it to any associated records found in Sugar.
Email Templates Use the email templates from your Sugar instance without leaving Outlook.
Send Later Set a date and time in the future to send an email message.
Email Tracking Enable tracking on your emails to view the number of opens, links clicked, and replies in the sidebar or Sugar Connect Portal.
Sugar Connect Meeting Scheduler Generate a unique, shareable link to let others see your availability, schedule a meeting with you, and automatically add the meeting to your calendar.
Record Sync The sync process shares data between Google and Sugar by first creating a corresponding record in the opposite system and then pushing changes back and forth from one or both sides. Sugar Connect enables lead and contact synccalendar sync, and task sync between Google and Sugar.

The Sugar Connect Portal

Users will primarily engage with Sugar Connect via the Sugar Connect Sidebar, but all Sugar Connect users also have access to a portal website where they can set up and manage certain Sugar Connect features. The portal is also where Sugar Connect administrators can perform administrative functions such as creating and managing user accounts. All Sugar Connect users can access the portal by selecting "Open Sugar Connect Portal" from the Sidebar Settings Menu. For complete information on using the Sugar Connect Portal, please refer to the Sugar Connect Portal User Guide.

The Sugar Connect Sidebar

The sidebar is the heart of Sugar Connect. It allows you to view and edit Sugar records in Outlook without opening your Sugar instance. The following sections explain how to access and pin the sidebar, load email senders and recipient details in the sidebar, and how to work with the sidebar's home view, list view, and record view.

Accessing the Sidebar

To access the Sugar Connect sidebar using Outlook for desktop, select, create, or open an email message or meeting and then click on the Open Sidebar option in Outlook's ribbon:
opensidebar

You must open the sidebar every time you view a new record in Outlook unless you have chosen to pin the sidebar open. For more information, refer to the Pinning the Sidebar section of this page.

Note: If your window is sized smaller than the available ribbon options, it may be necessary to scroll left or right to view all of the ribbon's options:
ribbon-scroll

To access the Sugar Connect sidebar using Outlook for the Web, click on any email message to open it, then click on the More Actions overflow menu inside the message and select Sugar Connect > Open Sidebar, which will be toward the bottom of the list.

Note: Once you open the sidebar, you may want to pin it open for ease of access later.
owaicon

Pinning the Sidebar

By default, the Sugar Connect sidebar will automatically close when you navigate to a new message or view in Outlook. You may find it useful to pin the sidebar in a perpetually open state.

Note: Pinning the sidebar open will make the sidebar automatically load for email messages viewed in the Outlook frame only. As a limitation of Outlook, you cannot pin the sidebar open for messages and meetings opened in a pop-out view or in the compose view.

In Outlook for Desktop and Outlook on the web, simply open the sidebar when a message is selected and click on the thumbtack icon to pin it open as shown in the following images. If you do not see the thumbtack, be sure that you are viewing the message in Outlook's frame and have not opened the message in a new window.

  • Outlook for Desktop:
    officeicon
  • Outlook on the web:
    owaicon2

Click the thumbtack icon a second time if you wish to unpin the sidebar from your mail view.

Loading Senders and Recipients in the Sidebar

Sugar Connect can find the lead or contact record associated with an email address that is included as a sender or recipient on an Outlook email message. Simply view any email message, open the sidebar (if necessary), and click on the Related Entries icon:
related-entries-icon

Sugar Connect will load the first email address it finds into the dropdown at the top of the sidebar and, if found in Sugar, will display its details in Record View. Click on the dropdown to retrieve additional email addresses found in the To, From, and CC fields of the current message and view their related Sugar lead or contact records in the sidebar.
related-entries-dropdown

If no match is found in Sugar for an email address, then Sugar Connect will give you the option to add a new Sugar record (i.e. a lead or contact).

Note that it is also possible to load Sugar details in the sidebar when creating a new message or meeting. Simply add at least one recipient or guest and open the sidebar to automatically search for their related email addresses.

The default view for the sidebar is the Home view. Click the Home button at the bottom of the sidebar to access the main Sugar Connect home view.
home

From the Home view, you can access Sugar data and perform actions enabled by Sugar Connect:

Home Feature Description
Search Sugar Use the search bar to quickly find specific Sugar records and view and edit them using Sugar Connect.
Tracked Emails View a list of emails currently being tracked.
Tracking Activity View a list of email tracking activities in chronological order.
Scheduled Emails View a list of queued, completed, and failed emails that were set to archive or marked as Send Later using Sugar Connect.
Sugar Records View lists of opportunities, tasks, cases, and other Sugar records in the Sidebar List View.
Back The left-facing arrow at the bottom of the sidebar will return you to the previous sidebar screen.
Related Entries Click on the Related Entries icon (the contact card icon) to view details from Sugar about senders and recipients found in the selected Outlook email message.
Settings Manage your settings and options by clicking the gear icon located at the bottom of the sidebar.

Sugar Connect provides simple access to your Sugar records via search directly from the sidebar.

Note: Users will only be able to see records as allowed by their team membership, user access type, and assigned roles in the Sugar application. For more information on teams and roles, please refer to the Team Management and Role Management documentation in the Sugar Administration Guide.

From the Home view, click inside the "Search Sugar" box, type a query, and press "Enter" on your keyboard to search the Sugar database for records in all of the modules to which you have access.
search2

To further refine search results, you can limit the search to a particular module using the module selector next to the search box. By default, the selector will be set to "ALL", indicating that all modules are being searched. Click on the word ALL (or on the currently selected module name) to reveal the list of available modules to be searched. You can even select multiple modules to search at once, which will result in the search box containing multiple module badges:
2modules-filter

Note: Module filtering is not available when performing searches from a module's Sidebar List View because the module is automatically set by default in the list view.

To view the details of a search result, simply click on the record's name to view it in Sidebar Record View, where you can see its details, related record subpanels, and perform record actions such as editing the record or navigating to the record in your Sugar instance. To return to the list of search results, click on the Back button at the bottom of the sidebar.
search-record-view

The Settings menu is always visible via the gear icon at the bottom of the Sugar Connect sidebar:
settingsoutlook

The Settings menu contains the following links:

Settings Menu Item Description
General Options View and update the options to enable dark mode, save email attachments by default, and relate emails to Sugar contact and account records on archive.
Email Tracking Options View and update options to track email opens, link clicks, and replies.
Open SugarCRM Navigate to your Sugar instance's URL in your web browser.
Open Sugar Connect Portal Navigate to the Sugar Connect Portal in your web browser.
Documentation Navigate to the Sugar Connect support site in your web browser.
Reload Refresh the connection between Sugar Connect and Sugar.
About Sugar Connect View connector-related information including add-in version, Sugar version, and authentication details.
Log Out Revoke your login credentials without uninstalling or disabling Sugar Connect. After logging out, you will have the option to log back in to the sidebar as the same user or switch to a different user.

General Options

The General Options section of the Sugar Connect Settings contains the following user-configurable settings:

  • Turn on dark mode: Enable or disable dark mode within the Sugar Connect sidebar to coordinate with your Office 365 style.
  • Save attachments by default: Enable or disable saving email attachments by default.
  • Relate emails to contact and account automatically on archive: Enable or disable automatically relating an archived email (incoming or outgoing) to the matching Sugar contact and account record(s), if applicable.

generaloptionsoutlook

From the Home view of the Sugar Connect sidebar, click on a module name to view lists of Sugar records in the sidebar. By default, you will see records assigned to you or due today. To see other filters, click on the three horizontal bars in the top corner.

For example, from Sugar Connect's home view, click on "Accounts" to view a list of Sugar accounts.
home-accounts2

The sidebar will display a list of records for the selected module. From the list view, you can filter and perform actions on the displayed Sugar records. When you click on a record from the list view, you will be shown its record view in the sidebar.

Filtering List View

To filter the list of visible records in a module list view, click on the Filter icon and apply one of the module's available filters. Any custom filters created by the logged-in user will also be available at the top of the filter list.
filter-accounts

List View Actions

To perform actions on the list of records in a module list view, click on the Actions menu next to the filter icon:
list-actions

The following list-view actions are available:

Menu Item Description
Search Records Use the search bar to quickly find specific Sugar records in the selected module.
Create Record Create a new Sugar record in the selected module from the Sugar Connect sidebar.
Refresh Fetch the latest list of records and filters from Sugar.

In addition, when viewing task records in list view, you can click on the empty checkbox next to a task to mark it "Completed" in Sugar. For more information, refer to the Working With Tasks section.

From the list view, click on a record's name to view its details from Sugar. The record's fields, panels, and subpanels will be presented as they are configured in your Sugar application by default. Sugar Connect Portal admin users can enable and disable fields from being displayed in the sidebar Record View. For more information, refer to the Customization section in the Sugar Connect Deployment and Administration Guide. From the record view, you can use the Actions Menu to perform actions such as editing the Sugar record.

Record View Actions

To perform actions on a record from the sidebar, click on the Actions menu:
record-actions

The following record actions are available:

Menu Item Description
View in Sugar Navigate to this record in your Sugar instance via web browser.
Edit Entry Edit the record via Sugar Connect and sync the changes with Sugar.
Convert Lead Shown for unconverted leads only, convert the lead into a contact, account, and opportunity without leaving the sidebar.
Refresh Fetch the record's latest details from Sugar.

While in record view, you can relate new or existing Sugar records to the current record you are viewing.

To create a new record in Sugar related to the current record you are viewing in the sidebar, scroll down to the related record's subpanel and click on the plus sign.
create-related

To relate an existing Sugar record to another Sugar record, view the primary record via the sidebar, scroll down to the related record's subpanel, and select "Link Existing Record" from the subpanel's Actions menu.
link-related

Working With Your Sugar Data in the Sidebar

From the Sugar Connect sidebar, you can work directly with your Sugar records by creating and editing records, converting leads, and even completing your Sugar tasks without leaving Outlook.

Note: For more information on syncing Sugar data with Google data, refer to the Contact Sync and Calendar Sync sections.

Creating Leads and Contacts

There are several ways to create new Sugar leads and contacts from Outlook via Sugar Connect:

  • Creating via Related Entries: Open an email sent by a person using an email address that is not found in Sugar. Open the Sugar Connect sidebar, click on the Related Entries icon and the sidebar will give you the option to add the sender as either a contact or lead.
  • Creating via Message or Meeting Compose: Enter an email address that is not found in Sugar into the recipient line of a new message or reply message. Open the Sugar Connect sidebar and click on the Related Entries icon. The sidebar will give you the option to add the sender as either a contact or lead.
  • Creating via Sidebar List View: You can also create new leads and contacts from the List View Actions Menu when viewing leads or contacts in list view.

Once you have initiated creating a new record, fill out the information in the new lead or contact form. When creating a contact, you will have the option to copy the address information from the related account record. Once you complete the create record form, expand the Actions menu, and select "Save Changes" to save the new record in Sugar.
createlead

Creating Sugar Records

You can easily create Sugar records in the sidebar via the "Create Record" option in the List View actions menu
create-acct

After completing the record's details, return to the actions menu to select "Save Changes" to save and view the record or "Save and Create New".
createnew

The new record will be saved in Sugar, and you can navigate to the record in Sugar via the "View in Sugar" option in the Record View actions menu.

Editing Sugar Records

You can easily edit Sugar records in the sidebar via the "Edit Entry" option in the Record View actions menu
edit-entry

After editing the record, return to the actions menu to select "Save Changes".
save-changes

The changes you save will be synced to and reflected in Sugar.

Converting Leads

Sugar Connect lets you convert leads into contacts, accounts, and opportunities from the sidebar in Outlook.

  1. When viewing a lead in the sidebar, open the Record View Actions menu and select "Convert Lead".
    convert-lead
    Note: If the lead's status is already "Converted", the Convert Lead option will be grayed out.
  2. Next, you will be prompted to associate a contact, account, and optionally, an opportunity.
    • If the record(s) you want to associate with the lead is already in Sugar, then you can start typing in the given field or click "Search and Select" to find a match from Sugar.
    • To create a new record in Sugar to associate with the lead, click on the Create (+) icon next to the field.
      searchandselectconnect
  3. Once you have finished finding and creating the records you want to associate with the lead, select "Save and Convert" from the Actions menu.
    save-and-convert

The sidebar will display a success message and you can find and navigate to the converted contact and related records below the lead's details in the sidebar.
converted

Working With Tasks

When viewing task records from Sugar in the Sugar Connect sidebar's list view, an additional option is available to quickly mark your tasks as complete. Click inside the task's adjacent checkbox to update its status to "Completed" and sync the change with Sugar.
complete-tasks

Emails

When working with email messages in Outlook, Sugar Connect lets you easily archive emails, use your Sugar email templates, and set a delay on emails that you want to write now but send later, and track if and when your emails were opened, links were clicked, and replies sent.

Email Archiving

When an email is sent to or received from an email address that is associated with a Sugar contact, Sugar Connect will archive the message to the contact and its parent account. Emails will be archived to any Sugar contacts and accounts that match the email addresses in the message's To, From, CC, and BCC fields.

There are three ways to archive email messages to Sugar from Outlook:
archiveoutlook

  • Quick Archive to Sugar: Archive and relate the email to the Sugar record with a matching email address.
  • Archive With Options: Select which attachments to archive and select the Sugar record(s) that you want to relate the archived email to.
  • "Copy to CRM" Folder: "Quick Archive" one or more email messages on the next Sugar sync by dragging them into the Copy to CRM folder.

Please click on the archiving options above to read more information about each method.

Note: To archive an email to a custom module, there must be an existing relationship to the Activities. For more information, refer to the Creating Relationships documentation in the SugarCRM Administration Guide.

Quick Archive to Sugar

When you are viewing a message in your Outlook inbox, click on "Quick Archive to Sugar" to save the email to Sugar and relate it to the Sugar records (i.e., accounts, contacts, leads) that match the email addresses in the message's To, From, CC, and BCC fields. When the option to "Save attachments by default" is enabled, the email attachments will be archived as well.
inboxarchive

Note: A matching email address must exist in Sugar for the archive to succeed. Otherwise, the email will not be archived to Sugar.

Similarly, you can use Quick Archive to Sugar when you are composing an outgoing message. Make sure to add the message recipient(s) first and then click the Quick Save button to generate a unique email ID in the BCC field of your message. On send, the email will be archived to Sugar and related to any Sugar records with matching email addresses.

Note: Emails archived using Quick Archive to Sugar will be flagged with the "Sugar Connect/Copied to CRM" category as it is using the "Copy to CRM" Folder.

Archive With Options

The "Archive With Options" functionality will open the full archive window and let you manually select the Sugar records (e.g., contacts, cases, opportunities) to relate to the email and to select which attachments you want to save in Sugar. You can also choose a time in the future to have the message sent.

Archive With Options for Existing Messages

Use the following steps to leverage the "Send With Options" functionality when you are viewing a message in Outlook.

  1. Click on or open the email that you want to archive to Sugar.

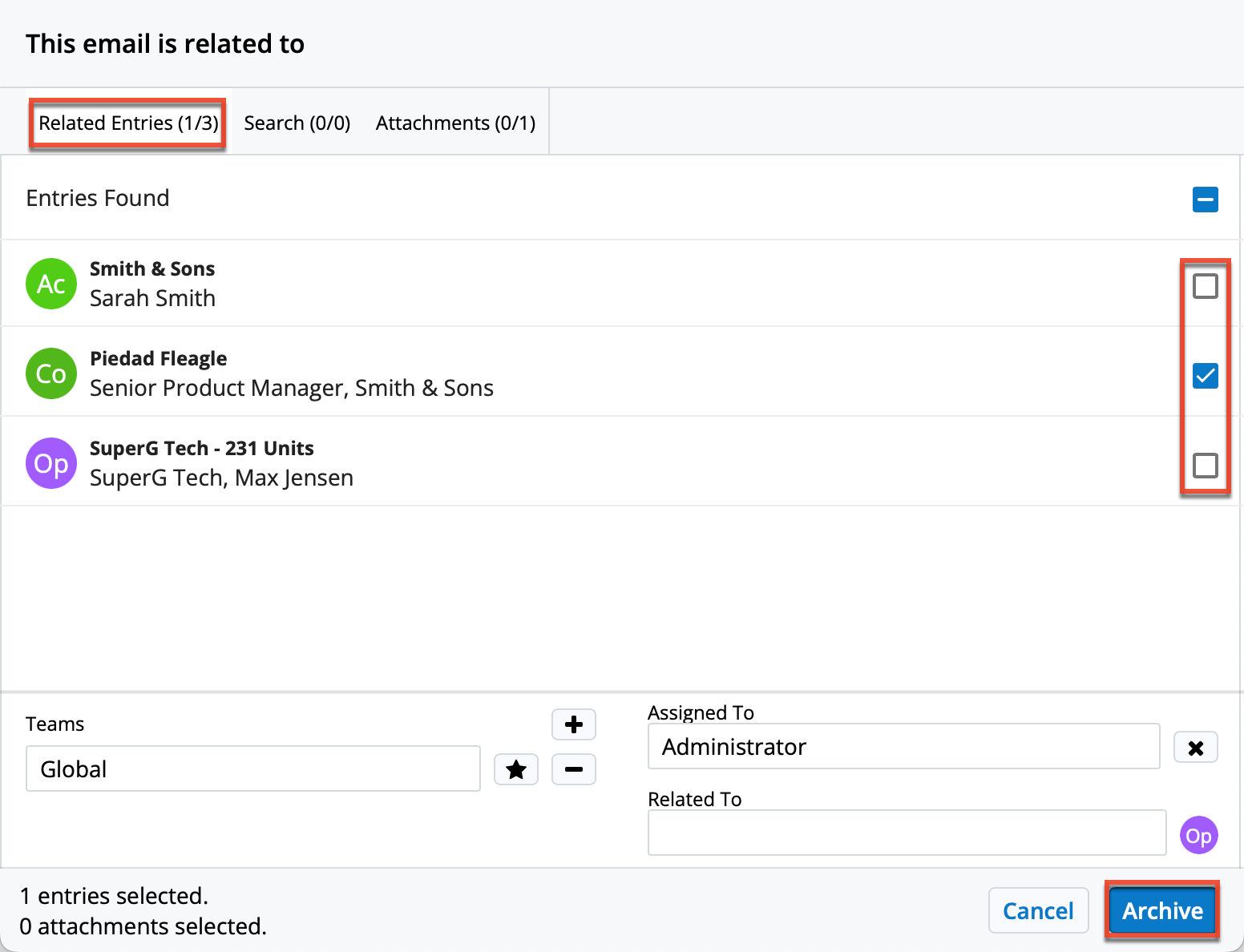

  2. In the popup window, place a checkmark next to the records that you want to relate the email message to in Sugar.
    save-with-options
    • Use the Search tab to find additional records. You may select any combination of lead, contact, account, opportunity, revenue line item, and case records to relate to the email.
      search-tab
    • By default, no message attachments will be selected for archive, but you may select any attachments that you want to upload to Sugar under the Attachments tab. When the option to "Save attachments by default" is enabled, the attachments will be automatically selected.
      attachments

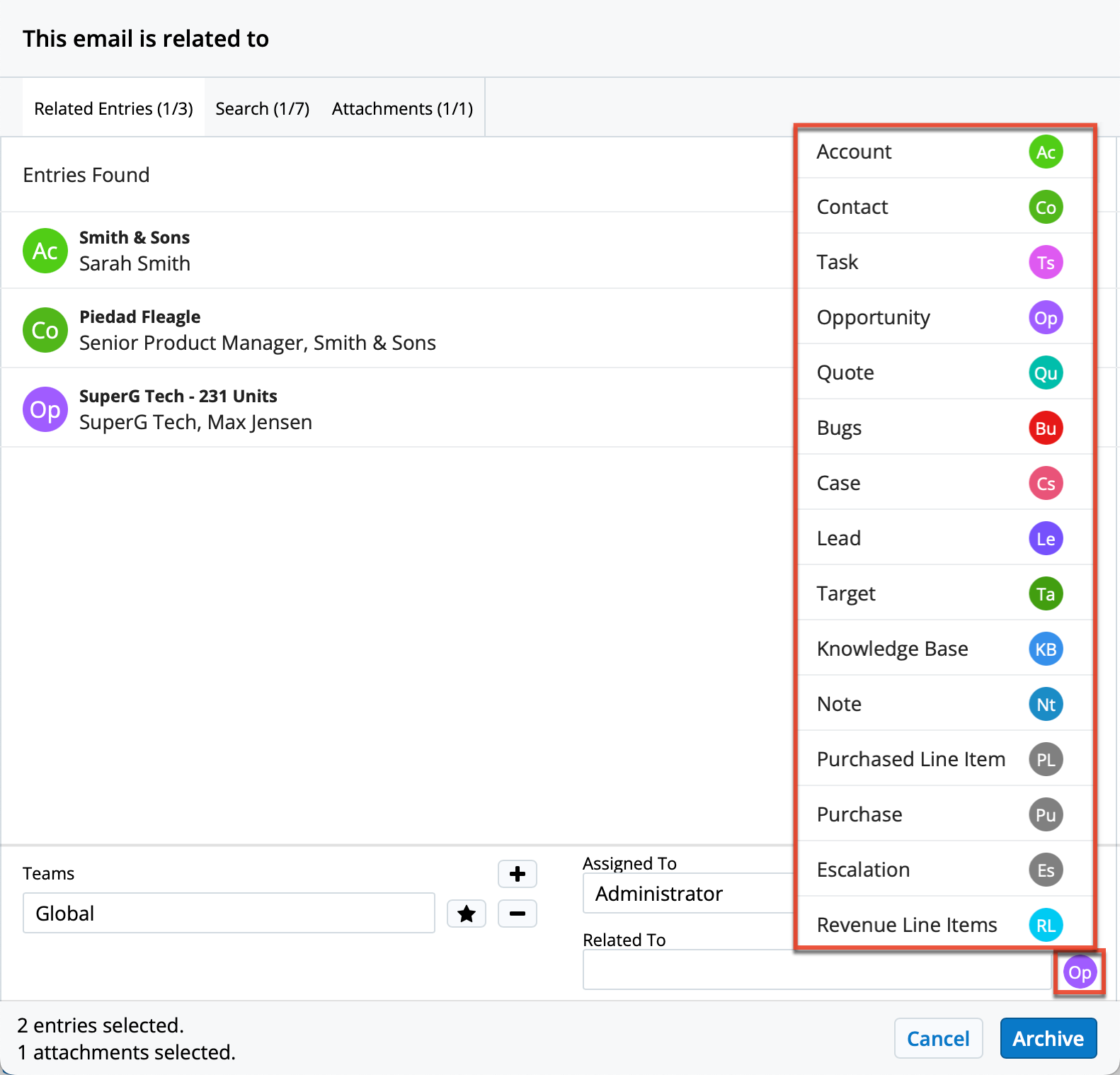

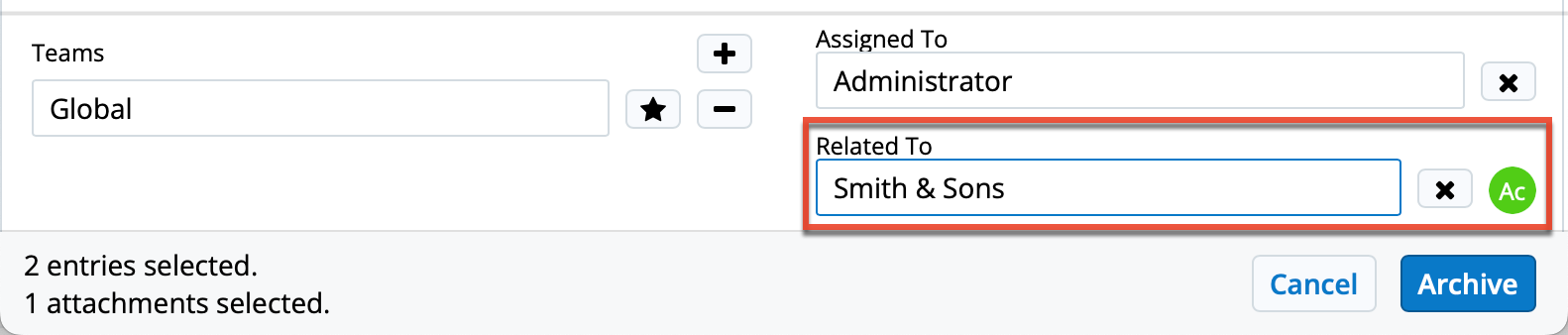

  3. Select the team and assigned user to save on the Sugar email record and then click on "Save" to close the window.
    Note: The Teams field is set to Global by default, but you can change the Teams field on a per-email basis.

On save, the email message's content will be copied to a record in Sugar's Emails module, any attachments will be saved to the Notes module, and the new email and note records will be related to the records you selected in the dialog.

Note: Emails archived using Archive with Options will be flagged with the "Sugar Connect/Copied to CRM" category as it is using the "Copy to CRM" Folder.

Archive With Options for New Messages

You may also choose to leverage the Archive With Options functionality when you are composing an email message in Outlook. Sugar Connect lets you send the message to both the chosen recipients and archive to your Sugar instance at once. Use the following steps to archive to Sugar the email you are sending from Outlook.

  1. Start composing a new message in Outlook or reply to or forward an existing message.
  2. In the message composition window, expand the Sugar Connect sidebar (if necessary) and click on "Archive With Options".

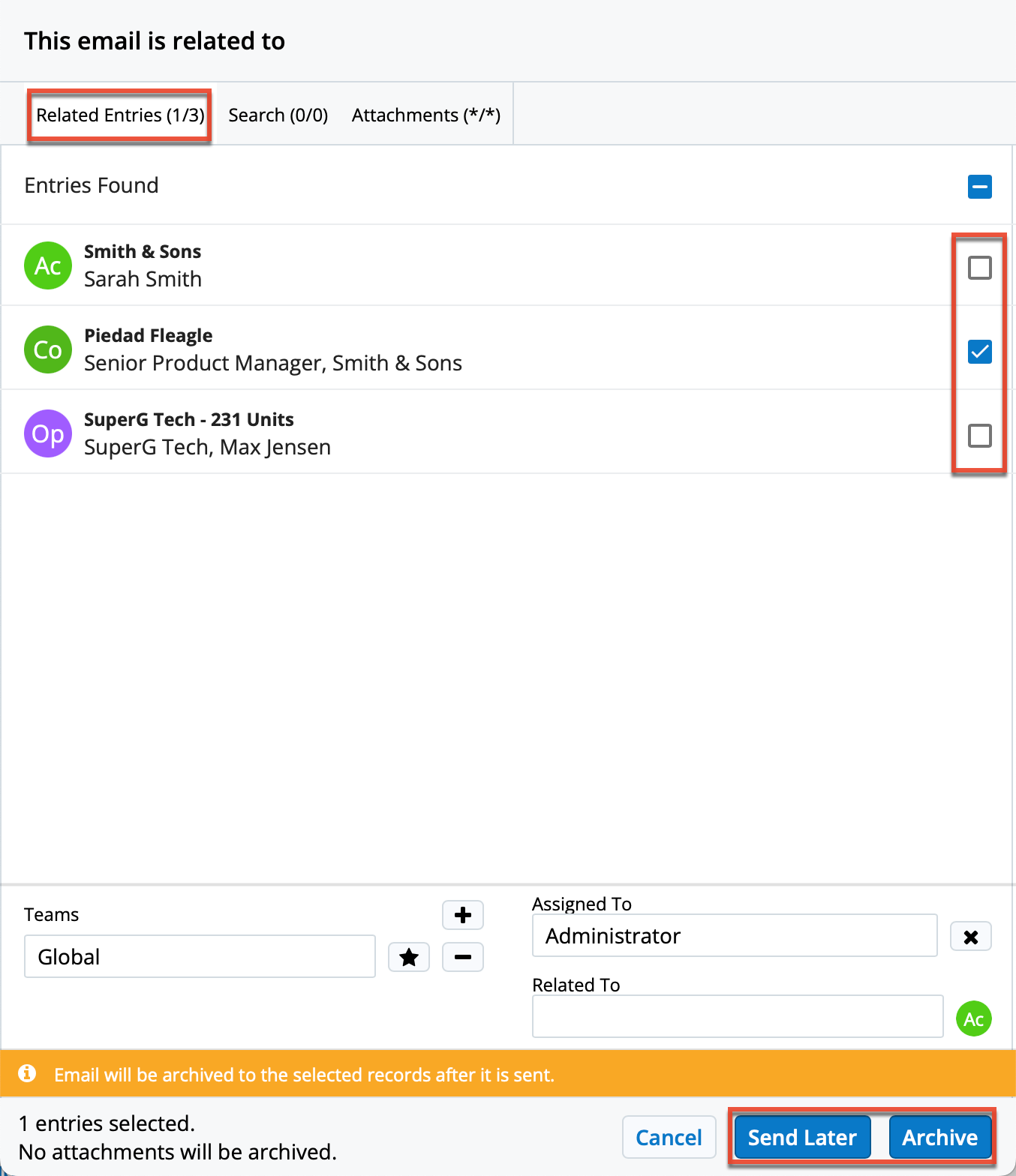

  3. In the popup window, place a checkmark next to the records that you want to relate the email message to in Sugar.
    save-with-options
    • Use the Search tab to find additional records. You may select any combination of lead, contact, account, opportunity, revenue line item, and case records to relate to the email.
      search-tab
    • By default, no message attachments will be selected for archive, but you may select any attachments that you want to upload to Sugar under the Attachments tab. When the option to "Save attachments by default" is enabled, the attachments will be automatically selected.
      attachments

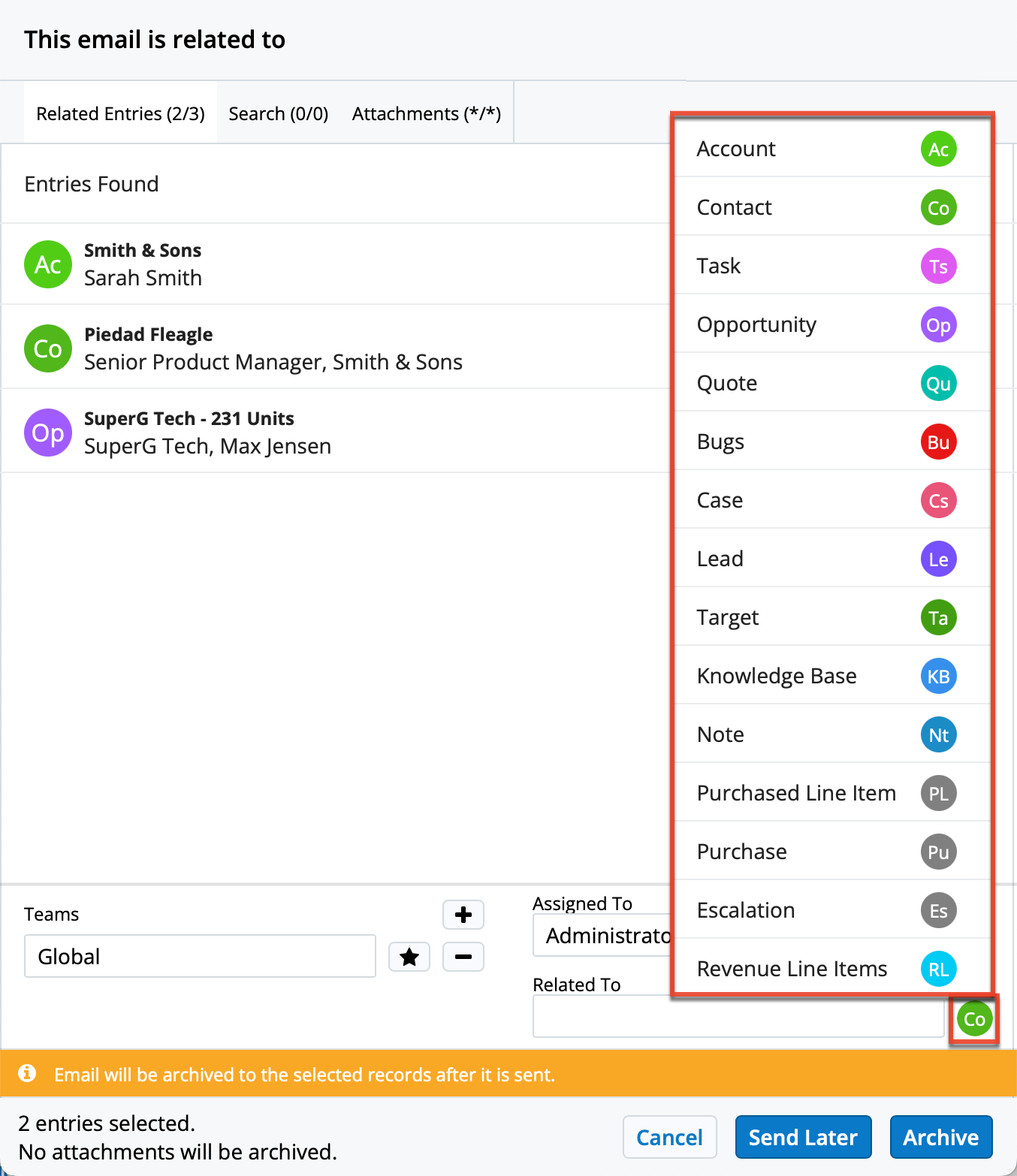

  4. Select the team and assigned user to save on the Sugar email record and then click on "Save" to close the archive window or click "Send Later" to set a date and time in the future for the message to be sent.
    Note: The Teams field is set to Global by default, but you can change the Teams field on a per-email basis.
    • After clicking Save button, you will notice a unique "marker id" address inserted in the message's BCC field. This indicates that the email is ready to be archived in Sugar upon sending.
  5. Finish composing your email including all desired recipients and send your message.

Upon sending, the message will be delivered to the recipients and archived to Sugar. The email message's content will be copied to a record in Sugar's Emails module, any attachments will be saved to the Notes module, and the new email and note records will be related to the records you selected in the dialog.

Note: It may take as long as 30 minutes to see the archived email in your Sugar instance.

Send Later

The "Send Later" feature in the "Archive with Options" window for new messages lets you set a date and time in the future to send an email message from Outlook. Simply compose an email message from scratch or by using a template and then click on the message's Sugar icon and select "Send Later" as the last step once you have finished composing your email.
send-later

Select a time to send the message, using the "Your time" and "Their time" prompts as guidance. To update the "Their time" value, select a new value for the Timezone field. Lastly, click "Confirm". The email message will close and be queued to send later. They are stored in your Drafts folder as well as the Sugar Connect > Send Later folder in your mailbox, and can be reviewed by clicking on the "Scheduled Emails" badge on the Sidebar Home view.

scheduledemails

"Copy to CRM" Folder

Sugar Connect has added a "Copy to CRM" Smart Folder to your email client where you can drag email messages that you want to archive to Sugar. This makes it easy to select and archive many emails at once to your Sugar instance, set up email rules for handling automatic archive, and to archive emails from your mobile device. When archiving email messages to Sugar using the Copy to CRM folder no email attachments will be included. Navigate to Settings > General Options > enable "Save attachments by default" if you want attachments automatically included.

To archive many emails at once, you can drag one or more emails to this folder and they will archive to Sugar on the next server sync (typically 15- or 30-minute intervals). If matching email addresses are found in Sugar for the To, From, CC, or BCC fields, then Sugar Connect will relate the email to those records in Sugar. After a successful sync, the emails will be moved back into the inbox and will be flagged with a category "Sugar Connect/Copied to CRM". Emails that failed to sync will remain in the Copy to CRM folder.

Note: The first time the sync is processed, it will only include emails that have been received in the last 90 days. Subsequent sync sessions will include all emails regardless of date received.

Mass Archive via "Copy to CRM"

To archive many emails at once, simply select the messages and drag them to the Sugar Connect > Copy to CRM folder. The first time the email sync is processed, only emails received in the last 90 days will be archived. Subsequent sync sessions will include all emails regardless of the date received. Emails will archive to Sugar on the next server sync (typically 15- or 30-minute intervals) and if matching email addresses are found in Sugar (i.e., accounts, contacts, leads) for the To, From, CC, or BCC fields, Sugar Connect will relate the email to the matching records in Sugar. Successfully archived emails will be moved back into the inbox and will be flagged with a category "Sugar Connect/Copied to CRM". If a matching email address is not found, the email will not be archived to Sugar and will remain in the Copy to CRM folder.
mass-archive-outlook

Auto-Archive via "Copy to CRM"

Follow these steps to automatically archive email messages received in Outlook:

  1. Start by creating a new inbox rule in Outlook.
    • In Outlook for Desktop, navigate to Organize > Rules > Create Rule in the Outlook ribbon.
      create-rule
    • In Outlook for Web, search the Settings menu for "rule" and select "Inbox rules".
      owa-search-rules
      Then click on "Add New Rule".
      owa-add-new-rule
  2. Create a rule, following Outlook's guidelines, to move all messages sent to you to the Sugar Connect > Copy to CRM folder. Alternatively, you can specify certain senders, domains, or keywords to refine the types of messages you want to auto-archive.
  3. Click "OK" to finish.

After the filter is created, all incoming messages (or the messages that match your filter criteria) will be automatically put into the "Copy to CRM" folder and archived to Sugar if a matching email address is found. If a matching email address is not found, the email will not be archived to Sugar.

Mobile Archive via "Copy to CRM"

While you cannot use Sugar Connect's sidebar on your mobile device, you can still use the power of Sugar Connect to archive emails using the "Copy to CRM" folder from the Outlook mobile app.

As an example, follow these steps to archive a message to Sugar by moving a message to the "Copy to CRM" folder in the Outlook app using your mobile device:

  1. Tap on the message that you want to archive.
  2.  Open the message's options menu and tap on "Move to Folder".
    mobile-move-to-folder
  3. Select the "Sugar Connect > Copy to CRM" label and then tap "OK".
    mobile-select-folder

The message is now in the "Copy to CRM" folder and will archive to Sugar during the next server sync if a matching email address is found. If a matching email address is not found, the email will not be archived to Sugar.

Archiving Attachments to Sugar

When archiving attachments, you have the option to archive the email along with its attachments or as a stand-alone document.

Archiving Emails With Attachments to Sugar

When archiving email messages to Sugar, Sugar Connect will detect any attachments and embedded images included with the message. When archived together, an email and its attachment(s) are saved as an email and related note(s) records, respectively, in Sugar. During quick archive and when using the "Copy to CRM" folder, if the option to "Save attachments by default" is enabled, the attachments are automatically saved to Sugar with the message.

When using Archive With Options, you can select which attachments to save under the Attachments tab in the archive window. You can also choose to select all or none of the images embedded into the email. Please note, images embedded using a URL that points to an external source will not be archived.
attachments

Archiving Attachments in Documents

Sugar Connect allows you to save an attachment to your Sugar instance without archiving the whole email message either from the Documents Module or from the Documents Subpanel.

Documents Module

You may use the Documents module in the Connect Sidebar to archive email attachments in Outlook.

  1. Select an email with an attachment and open the Sugar Connect Sidebar.
  2. Click the Home icon and click the Documents module.
  3. Click the Actions menu and select "Upload from Email".
    Outlookuploadfromemail
  4. Select the appropriate file. Please note, only one file may be uploaded at a time.
    uploadfile
  5. An alert will appear notifying you that the document was created. You may need to refresh for the file to appear on the list.
    refresh
Documents Subpanel

You may use the Documents subpanel in any module that has a relationship to documents (e.g. Contacts) to archive email attachments in Outlook.

  1. Select an email with an attachment and open the Sugar Connect Sidebar.
  2. Navigate to the appropriate Sugar record (e.g. Contact) and locate the Documents subpanel.
  3. Click the Actions menu and select "Upload from Email".
    uploadfromsubpanel
  4. Select the appropriate file. Please note, only one file may be uploaded at a time.
    uploadfile
  5. An alert will appear notifying you that the document was created. You may need to refresh for the file to appear on the list.
    refreshcontact

Troubleshooting Email Archiving

There are some reasons why email archiving could fail:

  • If the message failed to archive and the confirmation message "Email Saved to Sugar" did not appear, then the email was not archived because of slow internet connection or connection with your Sugar server. If you experience this issue, try archiving the email at a later time.
  • Sometimes the email archives to a different Sugar record (e.g., account, contact, opportunity, or case) than the one you expected. Double-check in Sugar that the correct relationship was made by searching for the email in the Emails module list view.
  • Errors with the network connection are the most common cause of a failed archive. Check with your company's network administrator to find out if there are network issues.

Email Templates

Sugar Connect communicates with your Sugar instance to retrieve email templates that you have created in your instance. When you use the templates with Sugar Connect, any variables are also detected and filled in automatically.

Note: Users will only be able to see templates as allowed by their team membership, user access type, and assigned roles in the Sugar application. For more information on teams and roles, please refer to the Team Management and Role Management documentation in the Sugar Administration Guide.

Email Templates List and Actions Menu

The Email Templates list and the Actions menu are available after clicking "Insert Template" on an email message.

To access the Email Templates actions menu, you must first click on "Insert Template" from the Sugar Connect options in the message's ribbon.
template

Note: The Sugar Connect options may be outside of the visible space provided in the window. If so, simply scroll to the right by clicking on the right-facing arrow on the right side of the ribbon.

Email Templates List

If your Sugar instance is on version 11.0.x or higher, the email templates will be organized by the tags applied to each record. For best practices in creating tags for the Email Templates module, please refer to the Optimizing Tag Usage help article. For additional information on email templates and tags, please refer to the Emails and Tags documentation in the Sugar Application Guide. The search bar at the top of the template list allows you to locate a specific template by name.
templates

Email Templates Action Menu

The following options are available in the Actions menu located at the top of the template list:
templatemenu

Menu Item Description
Create Email Template Navigate to your Sugar instance's Email Templates module to create a new template.
Refresh Reload the list of Email Templates from your Sugar instance to retrieve the latest changes.

Using Email Templates in Outlook

Follow these steps to insert one of your Sugar templates using Sugar Connect in Outlook.

  1. Compose a new message in Outlook or reply to or forward an existing message.
  2. Enter the recipient for the email, then click on "Insert Template" from the Sugar Connect options in the message's ribbon.
    template
    Note: The Sugar Connect options may be outside of the visible space provided in the window. If so, simply scroll to the right by clicking on the right-facing arrow on the right side of the ribbon.
  3. In the popup window, click on a template or use the search to find the template that you want to use.
  4. A preview of the template will load and the name of the lead or contact that matches the recipient's email address in Sugar will appear above the preview.

  5. templatepreview
  6. Optionally, you may erase the Related To value and start typing a different name or email address to search for leads and contacts from your Sugar database.
    relatedto
  7. Click on "Use Template" to transfer the content of the template to your email message in Outlook. The field variables will automatically be populated with the data from your selected Sugar lead or contact.

Searching Email Templates

If you have a lot of email templates, the template search can help you refine the list and find what you need. In the Insert Template window, click in the "Search Email Templates" search area. As you begin to type, the list will show relevant results that contain the string you enter. Clicking the "x" will clear the search and reset the template list. If your Sugar instance is on version 11.0 or higher, the email templates will be organized by the tags applied to each record.
searchtemplate

Creating Email Templates

The templates you use with Sugar Connect are the templates that you and your fellow Sugar users have created in your Sugar instance. To create a new email template for use with Sugar Connect, simply log into Sugar and create a new template in the Email Templates module. Please note, if your email template in Sugar contains an attachment, the attachment will not be included in the Sugar Connect email template. You can also access the Email Templates module directly from Sugar Connect via the "Create Email Template" option in the Email Templates Actions menu. For more information on creating email templates in Sugar, please refer to the Emails documentation in the Sugar Application Guide.

Note: Because it may take some time for changes in Sugar to sync to Sugar Connect, we recommend using the Refresh option in the Email Templates Actions menu after creating a new template in Sugar. This will retrieve the most up-to-date data and any new templates that have been created.

Editing Email Templates

The templates you use with Sugar Connect are the templates that you and your fellow Sugar users have created in your Sugar instance. You can quickly navigate to and edit an email template from Sugar Connect when you compose a new email message in Outlook. Simply click on "Insert Template" from the Sugar Connect options in the message's ribbon. Click on the template that you want to edit and an "Edit Template" option will be available at the bottom of the template's preview:
edittemplate

Click on the View in Sugar icon to navigate to the template record in your Sugar instance where you can edit the email template. For more information on editing email templates in Sugar, please refer to the Emails documentation in the Sugar Application Guide.

Note: Because it may take some time for changes in Sugar to sync to Sugar Connect, we recommend using the Refresh option in the Email Templates Menu after editing a template in Sugar. This will retrieve the most up-to-date data including any changes made to templates.

Template Statistics

When Email Tracking is enabled and email templates are used in combination, Sugar Connect compiles template statistics for each template. The statistics display the number of times: a template has been used in a tracked email, a template has been viewed by the recipient, a link within the email was clicked, and a recipient replied to the tracked email. You can toggle between viewing "All User Stats" or "My Stats" to gain insight into the effectiveness of each email template either across your organization or specific to your tracking history.
templatestats

Email Tracking

Sugar Connect offers you the ability to track emails sent from Outlook to prospects, customers, and anyone with whom you want to track interactions. Email Tracking will show if a recipient has opened your email, clicked any links you provided, and replied. If you have set up any email templates, the same metrics can be tracked and viewed in a summary per template.

Note: Sugar Connect administrators are able to set the Email Tracking default settings. For more information, please refer to the Tracking Settings section in the Sugar Connect Deployment and Administration Guide.

Enabling and Disabling Email Tracking

The Email Tracking features can be enabled/disabled in the following places:

  • Toggle Tracking: Turn tracking on or off while composing an email.
  • Email Tracking Options: Set your preferences for enabling/disabling default behaviors in the sidebar.
  • Sugar Connect Portal: Set your preferences for enabling/disabling default behaviors in the Email Tracking Settings tab.

Note: The Sugar Connect Portal settings and the sidebar Email Tracking options will mirror each other. Changing a setting in one location will automatically update the other location.

Email Tracking Rules

For Sugar Connect to track emails and display tracking statistics correctly, the following guidelines should be kept in mind:

  • Microsoft Permissions: To track email replies, you must give Sugar Connect permission to access your data as explained in the Sugar Connect User Installation Guide.
  • Links: Sugar Connect supports link tracking for the following link types: HTTP and HTTPS. All other link types (e.g., Mailto, RDP, UDP) are not supported and will not be tracked.
  • Recipients With the Same IP Address as Sender: Users may not get any reported event from tracked emails sent to a recipient who is also using Sugar Connect or from users who are using the same IP Address.
  • Email Aliases: Reply events will not work when tracked emails are used with an alias address.
  • Disabled Images: Sugar Connect uses a tracking image/pixel embedded within your tracked email. If a recipient has disabled the option to automatically display images within their email client, the tracking image will not be loaded and Sugar Connect will not be able to notify the user that the message has been opened.
  • Conflicts With Other Email Tracking Providers: Because Sugar Connect uses images embedded in emails to track them, it is important to note that other email-tracking companies will have their own code or images that they may embed on a hyperlink. Sugar Connect cannot track hyperlinks that already have other images/codes embedded on the hyperlink. To avoid conflicts, do not copy/paste hyperlinks from previous emails or from another email. Chances are, those links are already edited or might have its own tracking links from other companies. Instead, use Outlook's "Insert Link" option when adding links in your email.
  • Tracking Multiple Email Addresses: Tracking an email with multiple email addresses (To, CC, BCC) will show up as one section on the Sugar Connect side panel. It may appear that the emails weren't tracked because an email sent with multiple email addresses will only be under one "tracking file". The side panel tracks all email addresses; however, it is not possible to see which email address it is tracking. Sugar Connect can only record the location where the email was opened but not who opened the email.
  • Time to Track: Depending on the action performed and the age of the tracked email, it may take a little time to register in Sugar Connect. The older the tracked email is, the longer it takes to track. Slow or interrupted network connections may cause additional delays on tracked events. The following guidelines are typical for tracked events:
    • Clicks and views will take 1-3 minutes to prevent the side panel from being flooded with new events.
    • Reply events will take up to 15 minutes to appear than the actual time the reply was received.
    • After 24 hours of being sent, the statistics and notifications may take up to 3 hours.

Toggling Tracking Within Emails

While composing an email, click the Track Email button. A Bcc marker will be added to the message and you will see a notification saying "This email has been marked for tracking".
trackemail

Email Tracking Options

From the sidebar, click the Settings gear icon, and select "Email Tracking Options". You can toggle the following settings, which are enabled by default, off or on based on your preferences:

  • Track clicks on links in tracked emails: When a link is included in either a template or by using the "Insert link" button in your email, you can find out if the recipient clicked it.
  • Show real-time click notifications: A popup will be shown in the sidebar and the Tracking Activity badge will display a number.
  • Enable real-time email view notifications: A popup will be shown in the sidebar and the Tracking Activity badge will display a number.

Note: Some email clients may route tracked emails into a spam folder, thus impacting the delivery/receipt of your emails.


outlookoptions

Email Tracking in Sidebar

There are two areas within the sidebar to view the emails you are tracking:

  • Tracked Emails: This badge opens a list of individual emails in the order they were sent. Each email displays the total number of opens, link clicks, and replies. Clicking the arrow will open the details of the statistics including time stamps and locations when applicable.
  • Tracking Activity: This badge opens a list of all opens, link clicks, and replies in chronological order. A red circle with a number will appear to alert you when you have new tracked activity.
    alerts

Note: Once the tracked email's age reaches 24 hours, there may be a delay in updates to tracking statistics of up to 3 hours.

Email Tracking in Sugar Connect Portal

Within the Sugar Connect Portal, you have the ability to view a much more detailed reporting of all tracked emails. For more information please visit the Sugar Connect Portal User Guide.

Calendar Sync

Sugar Connect will sync meetings between Sugar and the Outlook 365 Calendar. After the initial sync, events that are assigned to you in Sugar will be synced to Outlook and vice versa. The sync interval between Outlook and Sugar occurs once every 15 - 20 minutes.

For steps to sync your calendars, please refer to the Sugar Connect Portal User Guide, which covers the Sync Rules for Calendar and how to use the Sugar Connect Portal to sync calendar events with Outlook. The following sections cover how to work with synced events in Outlook once you have set up the calendar sync.

Note: Sugar Connect Calendar Sync does not support shared calendars.

Viewing Sugar Calls and Meetings in Outlook

Sugar meeting records will sync to Outlook as standard meeting records. Sugar call and task records will sync to Outlook as appointments if you choose to enable sync for these record types.

The way you will view your Sugar events in Outlook depends on the option you selected when you enabled calendar sync. If you selected the default behavior, "Use primary calendar", then you can simply switch to your primary calendar view and find the events that have synced from Sugar among the rest of your meetings and appointments. If you disabled the option to use your primary calendar, then you will view your Sugar events in Outlook by switching to the calendar view and enabling the calendar labeled "Sugar":
sugar-calendar

Creating Sugar Meetings From Outlook

To create a new event in Outlook that syncs to Sugar's Meetings module, you must first set up calendar sync. During setup, if you select "Use primary calendar", then you can simply create meetings in your primary calendar view and they will sync to Sugar as meeting records. You can also choose whether or not to sync private appointments.

If you did not choose to use your primary calendar (this is the default behavior), then you must create meetings in the calendar labeled "Sugar" in Outlook for them to sync to Sugar. You can do this by selecting "Sugar" in the meeting's "From" field:
sugar-calendar-create

Upon sending the meeting request, you will be warned that the meeting is not in your primary calendar. This is expected and you should click on "Send Invitation" to proceed.
send-anyway

On the next sync, any events that have been added to the Sugar calendar in Outlook will copy to Sugar's Meetings module.

Adding Existing Outlook Meetings to Sugar

For users who accepted the default calendar sync behavior "Use primary calendar" when they set up calendar sync, meetings that were set up before Sugar Connect was installed and meetings that are accepted in Outlook will automatically sync with Sugar during the standard sync event.

Users who disabled the default calendar sync behavior "Use primary calendar" when they set up calendar sync, however, must copy any existing or accepted events from their primary Outlook calendar to the Outlook calendar labeled "Sugar". As an example, the following steps cover how to copy an event to the Outlook "Sugar" calendar.

Note: Outlook for Mac OS Desktop does not support copying events to other calendars. Therefore, users who are syncing the Outlook "Sugar" calendar (opposed to syncing their primary Outlook calendar) and are using Outlook for Mac cannot sync calendar events that are accepted to or created in their primary calendar to Sugar. As a workaround, log into your Office 365 calendar on the web (https://outlook.office365.com/calendar/) and duplicate the event there using the following steps.

Again, the following steps apply only to users who have disabled "Use primary calendar" when they set up calendar sync and must be performed using their Outlook calendar on the web.

  1. Open the event that you want to copy to Sugar by double-clicking on it.
  2. Select "Duplicate event" from the event's overflow menu.
    duplicate-event
  3. The new copy of the event will open. Use the calendar selector in the event's title bar to select the "Sugar" calendar.
    select-calendar
    Note: The window color will change to the color you have selected for your Sugar calendar.
  4. Save the calendar event without sending invitations.
    save-meeting-copy

You will now have duplicate meetings on your calendar and the event that is saved to the Sugar calendar will sync to Sugar during the next sync event. Note that you may choose to hide the Sugar calendar from view in Outlook if you prefer not to see duplicate events.

Deleting Synced Events

Events that you delete from your synced Outlook calendar will automatically be deleted from Sugar during the next calendar sync. Please wait for the next sync for the event to be deleted.

Contact Sync

You can sync your Sugar leads and contacts to Outlook via Sugar Connect by following the steps to set up contact sync. Leads and contacts assigned to you will sync by default. To sync additional leads or contacts not currently assigned to you in SugarCRM, navigate to the record in the sidebar > click the actions menu > Select "Mark to Sync".
marktosync



Once you have your sync enabled for your contact records, click on the People icon at the bottom of Outlook to access your Outlook address book. Leads and contacts that are synced from Sugar will be labeled "SugarCRM" in Outlook's address book.

Simply click on the "SugarCRM" label to view your synced contacts:
sugar-contacts

For steps to sync your contacts, please refer to the Sugar Connect Portal User Guide, which covers the Sync Rules for Leads and Contacts and how to use the Sugar Connect Portal to sync leads and contacts to Outlook.

Sugar Connect Meeting Scheduler

The Sugar Connect Meeting Scheduler lets users easily schedule meetings with prospects, partners, customers, and coworkers and sync them to Sugar by just sharing a link.

For more information, please refer to the Sugar Connect Portal User Guide.

Switching Sugar User Accounts

If you wish to switch to a different Sugar user account or instance in Sugar Connect, open the Sidebar Settings menu and select "Log Out of Sugar". You will then be prompted to re-authenticate with the new user information.

Clearing the Outlook Cache

If you are experiencing unusual errors or behavior, it may help to clear the cookies from your Outlook cache. Outlook will rebuild the deleted cache files from scratch when you restart Outlook.

If you are running the desktop Outlook application on a Mac computer, follow these steps to clear the cache:

  1. Exit Outlook.
  2. Launch a Finder window.
  3. Click on the Go menu in your computer's task bar.
  4. With the Go menu open, press and hold the Option key on your keyboard to reveal the Library folder.
  5. Click on "Library".
  6. Navigate to Containers > com.microsoft.Outlook > Data > Library > Cookies.
  7. Right-click on the "Cookies.binarycookies" file and select "Move to Trash".
  8. Close the Finder window and restart Outlook.

If you are running the desktop Outlook application on a Windows computer, follow these steps to clear the cache:

  • Exit Outlook.
  • Press the Windows key+R.
  • In the Run dialog box, enter %localappdata%\Microsoft\Outlook and then press Enter.
  • Double-click on the RoamCache folder to view the cache files.
  • Press and hold the Shift key while selecting all of the files and then press the Delete key.
  • Close the window and restart Outlook.

If you are using Outlook on the Web, you can also clear your browser cache using the steps found in the Clearing Browser Cache troubleshooting article.

Last modified: 2021-10-19 13:12:28
